Drafting Men's Double-Breasted Waistcoat Pattern
Measurements needed (all measurements are taken
with the person wearing shirt & vest):
- chest: taken at fullest part of chest.
- waist
- waist_length: taken at the middle of back, from base of shirt collar down to waistline.
- "Scale" is equal to 1/3 of chest plus 6 " (15.6 cm) : ( scale = ( ( chest / 3 ) + ( (6 " or 15.6 cm) ) ) )
Seam allowance is included. It is 3/8 " (1 cm) .

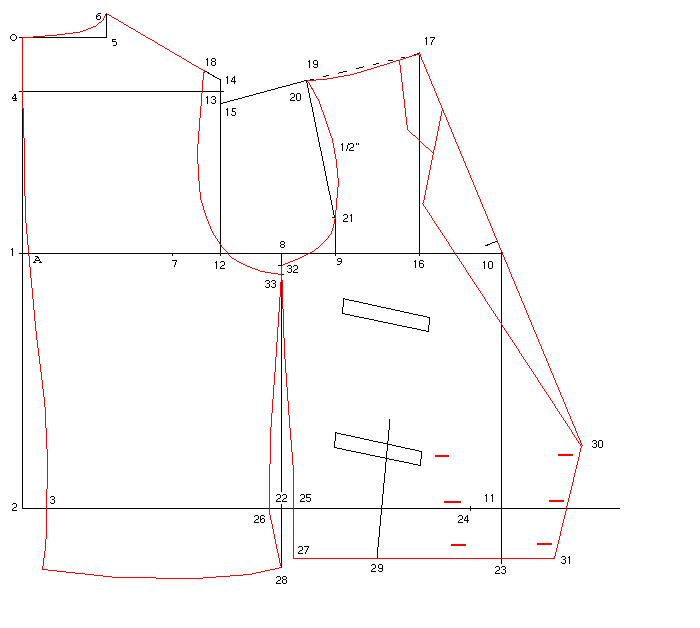

From
O
(
back of neck) draw line down ( scale / 2 ) to
1
From
O
draw line down ( waist_length + seam_allowance ) to
2
From
2
draw line right 1.0 " (2.6 cm) to
3
From
O
draw line down ( scale / 8 ) to
4
From
O
draw line right ( scale / 6 ) + (0.5 " or 1.3 cm) to
5
From
5
draw line up 1.0 " (2.6 cm) to
6
Shape
O
,
4
, past
1
,
3
, locating
A
on line
1
.
From
A
draw line right ( scale / 3 ) to
7
From
7
draw line right ( scale / 4 ) to
8
From
8
draw line right 2.25 " (5.85 cm) to
9
From
A
draw line right ( chest / 2 ) + (1.75 " or 4.55 cm) to
10
From
10
square down to locate
11
on line
2
.
From
7
move right 2 " (5.2 cm) to locate
12
Square from
4
and
12
to locate
13
14
and
15
are each 1/2 " (1.3 cm) above and below
13
From
9
move right ( scale / 6 ) + (1/2 " or 1.3 cm) to locate
16
From
16
draw line up ( scale / 2 ) - (1/2 " or 1.3 cm) to
17
From
14
move up line
14
-
6
3/4 " (2 cm) to
18
From
17
move left & down line
17
-
15
an amount equals to
6
-
18
to locate
19
From
19
move down 1/4 " (0.7 cm) to locate
20
.
From
9
draw line up 1.5 " (3.9 cm) to
21
From
8
square down to line
2
to locate
22
From
11
draw line down 3 " (7.8 cm) to
23
From
3
draw line right ( waist / 2 ) + (1.75 " or 4.5 cm)
From
22
move right by (
24
to
11
) / 2 to locate
25
From
22
move left by (
24
to
11
) / 2 to locate
26
From
25
move down 2.5 " (6.5 cm) to locate
27
From
26
move down 3.25 " (7.8 cm) to locate
28
29
is 3 " (7.8 cm) from line
25
-
11
.
30
is 3.5 " (9 cm) from line
10
-
23
.
31
is 2.5 " (6.5 cm) from line
10
-
23
.
From
8
move down 1/2 " (1.3 cm) to locate
32
From
32
move down 3/8 " (1 cm) to locate
33
.
The next step is exactly as they are in the original draft. I think it means to "make a small dart at about 10 to shorten the lapel line a bit".
Take a small cut through lapel line at about
10
to keep the cross-over short.
